ДИНАМИЧЕСКИЕ ГОЛОВКИ VISATON
и варианты их комплектации

Компоненты для построения hi-fi акустических стерео систем,
отвечающих требованиям точного звуковоспроизведения



MHT 12 8 OHM High-end (hi end) tweeter-range magnetostat (ribbon) Динамическая VISATON головка MHT 12 8 OHM	Technical Data: Rated power 150 Watt (12 dB/Okt.; 3000 Hz) Maximum power 200 Watt (12 dB/Okt.; 3000 Hz) Nominal impedance 8 Ohm Frequency response (-10 dB) 2000 - 40000 Hz Mean sound pressure level 91 dB (1W/1m) Cutout diameter 95 mm Net weight 0,56 kg D.C. resistance Rdc 7,7 Ohm Амплитудно-частотная характеристика, импеданс
VISATON
KE 25 SC 8 OHM Magnetically shielded 25 mm (1") high-end (hi end) dome driver with a ceramic dome Динамическая VISATON головка KE 25 SC 8 OHM	Technical Data: Nominal power handling with high pass 80 Watt(12 dB/Okt.; 2000 Hz) Peak power handling with high pass 140 Watt(12 dB/Okt.; 2000 Hz) Nominal impedance 8 Ohm Frequency response (-10 dB) 800 - 25000 Hz Mean sound pressure level 89 dB (1W/1m) Resonance frequency fs (kompensiert) Magnetic induction 1,7 Tesla Magnetic flux 425 µ Weber Voice coil diameter 25 mm Cutout diameter 82 mm Net weight 0,75 kg D.C. resistance Rdc 6,0 Ohm Inductance of the voice coil L 0,09 mH Амплитудно-частотная характеристика, импеданс
VISATON
DSM 50 FFL 8 OHM 50 mm (2") High-End (hi end) titanium dome driver Динамическая VISATON головка DSM 50 FFL 8 OHM	Technical Data: Nominal power handling with high pass 120 Watt (12 dB/Okt.; 800 Hz) Peak power handling with high pass 180 Watt (12 dB/Okt.; 800 Hz) Nominal impedance 8 Ohm Frequency response (-10 dB) 400 - 15000 Hz Mean sound pressure level 91 dB (1W/1m) Resonance frequency fs 600 Hz Magnetic induction 1,4 Tesla Magnetic flux 880 µ Weber Voice coil diameter 5 cm Cutout diameter 106 mm Net weight 1,26 kg D.C. resistance Rdc 6,4 Ohm Mechanical Q factor Qms 0,86 Electrical Q factor Qes 0,81 Total Q factor Qts 0,41 Effective piston area Sd 20 cm2 Dynamically moved mass Mms 1,1 g Inductance of the voice coil L 0,18 mH Амплитудно-частотная характеристика, импеданс
VISATON
TI 100 8 OHM 10 cm (4") High-End (hi end) low-midrange driver featuring a completely new type of diaphragm cone made of pure titanium Динамическая VISATON головка TI 100 8 OHM	Technical Data: Rated power 40 Watt Maximum power 60 Watt Nominal impedance 8 Ohm Frequency response (-10 dB) fu - 20000 Hz Mean sound pressure level 86 dB (1W/1m) Maximum cone displacement 4,5 mm Resonance frequency fs 62 Hz Magnetic induction 1,2 Tesla Magnetic flux 300 µ Weber Height of front pole-plate 4 mm Voice coil diameter 20 mm Height of winding 8,5 mm Cutout diameter 101 mm Net weight 1,05 kg D.C. resistance Rdc 6,0 Ohm Mechanical Q factor Qms 7,05 Electrical Q factor Qes 0,4 Total Q factor Qts 0,38 Equivalent volume Vas 6,92 l Effective piston area Sd 54 cm2 Dynamically moved mass Mms 4 g Force factor Bxl 4,8 T m Inductance of the voice coil L 0,7 mH Амплитудно-частотная характеристика, импеданс
VISATON
AL 170 8 OHM 17 cm (6.5") High-End (hi end) low midrange driver with stiff, anodized aluminium cone Динамическая VISATON головка AL 170 8 OHM	Technical Data: Rated power 70 Watt Maximum power 100 Watt Nominal impedance 8 Ohm Frequency response (-10 dB) fu - 10000 Hz Mean sound pressure level 88 dB (1W/1m) Maximum cone displacement 22 mm Resonance frequency fs 38 Hz Magnetic induction 1,1 Tesla Magnetic flux 520 µ Weber Height of front pole-plate 6 mm Voice coil diameter 2,5 cm Height of winding 1,8 cm Cutout diameter 15 cm Net weight 1,2 kg D.C. resistance Rdc 5,6 Ohm Mechanical Q factor Qms 3,88 Electrical Q factor Qes 0,43 Total Q factor Qts 0,39 Equivalent volume Vas 34 l Effective piston area Sd 133 cm2 Dynamically moved mass Mms 13 g Force factor Bxl 6,35 Tm Inductance of the voice coil L 0,91 mH Амплитудно-частотная характеристика, импеданс
VISATON системы и колонки - вуферы, сабвуферы

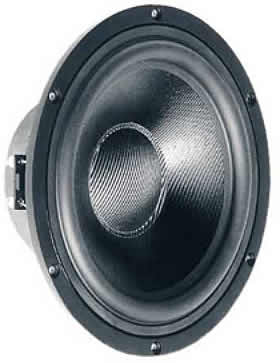

GF 200 2 X 4 OHM 20 cm (8") High-End (hi end) woofer with black glass fibre cone Динамическая VISATON головка GF 200 2 X 4 OHM	Technical Data: Rated power 120 Watt Maximum power 180 Watt Nominal impedance 4 Ohm Frequency response (-10 dB) fu - 8000 Hz Mean sound pressure level 85 dB (1W/1m) Maximum cone displacement 20 mm Resonance frequency fs 32 Hz Magnetic induction 1,3 Tesla Magnetic flux 930 µ Weber Height of front pole-plate 6 mm Voice coil diameter 38 mm Height of winding 20 mm Cutout diameter 190 mm Net weight 2,5 kg D.C. resistance Rdc 3,0 Ohm Mechanical Q factor Qms 4,53 Electrical Q factor Qes 0,76 Total Q factor Qts 0,65 Equivalent volume Vas 62 l Effective piston area Sd 214 cm2 Dynamically moved mass Mms 25 g Force factor Bxl 4,6 T m Inductance of the voice coil L 0,65 Амплитудно-частотная характеристика, импеданс
VISATON
TIW 200 XS 8 OHM 20 cm (8") High-end (hi end) woofer specially for use as a small subwoofer. The extra-wide elastic cone Динамическая VISATON головка TIW 200 XS 8 OHM	Technical Data: Rated power 120 Watt Maximum power 180 Watt Nominal impedance 8 Ohm Frequency response (-10 dB) fu - 7500 Hz Mean sound pressure level 84 dB (1W/1m) Maximum cone displacement 25 mm Resonance frequency fs 26 Hz Magnetic induction 1,1 Tesla Magnetic flux 1050 µWeber Height of front pole-plate 8 mm Voice coil diameter 38 mm Height of winding 30 mm Cutout diameter 190 mm Net weight 3,5 kg D.C. resistance Rdc 6,1 Ohm Mechanical Q factor Qms 5,27 Electrical Q factor Qes 0,45 Total Q factor Qts 0,42 Equivalent volume Vas 65 l Effective piston area Sd 206 cm2 Dynamically moved mass Mms 35 g Force factor Bxl 8,7 Tm Inductance of the voice coil L 1,6 mH Амплитудно-частотная характеристика, импеданс
VISATON
TIW 250 XS 8 OHM 25 cm (10") high-end (hi end) woofer. The extra-wide elastic surround Динамическая VISATON головка TIW 250 XS 8 OHM	Technical Data: Rated power 200 Watt Maximum power 300 Watt Nominal impedance 8 Ohm Frequency response (-10 dB) fu - 3000 Hz Mean sound pressure level 89 dB (1W/1m) Maximum cone displacement 28 mm Resonance frequency fs 31 Hz Magnetic induction 1,3 Tesla Magnetic flux 1600 µWeber Height of front pole-plate 8 mm Voice coil diameter 50 mm Height of winding 25 mm Cutout diameter 235 mm Net weight 4,5 kg D.C. resistance Rdc 5,7 Ohm Mechanical Q factor Qms 4,33 Electrical Q factor Qes 0,32 Total Q factor Qts 0,3 Equivalent volume Vas 73 l Effective piston area Sd 314 cm2 Dynamically moved mass Mms 49 g Force factor Bxl 13,0 Tm Inductance of the voice coil L 1,7 mH Амплитудно-частотная характеристика, импеданс
VISATON
TIW 300 8 OHM 30 cm (12") high-end (hi end) woofer with a black cellulose diaphragm Динамическая VISATON головка TIW 300 8 OHM	Technical Data: Rated power 300 W Maximum power 600 W Nominal impedance 8 Ohm Maximum cone displacement +/- 16 mm Resonance frequency fs 25 Hz Magnetic induction 1,1 T Magnetic flux 1800 µWeber Height of front pole-plate 8 mm Voice coil diameter 65 mm Height of winding 23 mm Cutout diameter 288 mm Net weight 7 kg D.C. resistance Rdc 5,6 Ohm Mechanical Q factor Qms 4,59 Electrical Q factor Qes 0,3 Total Q factor Qts 0,28 Equivalent volume Vas 160 l Effective piston area Sd 510 cm2 Dynamically moved mass Mms 92 g Force factor Bxl 16,5 Tm Inductance of the voice coil L 1,7 mH Амплитудно-частотная характеристика, импеданс
VISATON
TIW 400 DS 2 x 4 OHM 40 cm (15") High-End (hi end) woofer with black cellulose cone Динамическая VISATON головка TIW 400 DS 2 x 4 OHM	Technical Data: One voice coil not connected Rated power 300 Watt Maximum power 700 Watt Nominal impedance 4 Ohm Frequency response (-10 dB) fu - 3000 Hz (fu: Lower cut-off frequency depending on cabinet) . Mean sound pressure level 88 dB (1W/1m) Maximum cone displacement 27 mm Resonance frequency fs 21 Hz Magnetic induction 1,06 Tesla Magnetic flux 2000 µ Weber Height of front pole-plate 10 mm Voice coil diameter 60 mm Height of winding 25 mm Cutout diameter 357 mm Net weight 6,7 kg D.C. resistance Rdc 3,5 Ohm Mechanical Q factor Qms 6,27 Electrical Q factor Qes 0,9 Total Q factor Qts 0,79 Equivalent volume Vas 422 l Effective piston area Sd 755 cm2 Dynamically moved mass Mms 110 g Force factor Bxl 7,5 T m Inductance of the voice coil L 1,2 mH Амплитудно-частотная характеристика, импеданс

в начало

Варианты исполнения акустических систем:
комплектация динамических головок VISATON


Акустическая система		Назначение

Трифоника		Компактная акустическая система для небольшого помещения с ограниченным количеством свободного места (библиотека, кабинет)

АС - 1 3-х полосная пассивная		Компактная акустическая система (45л) для помещения 15-20 кв.м

АС - 2 3-х полосная пассивная		Полноформатная "бескомпромиссная" акустическая система для помещения 20-25 кв.м

АС - 3 3-х полосная пассивная		Большая чувствительная акустическая система для помещения 25-40 кв.м

АС - 4 4-х полосная пассивная		Оптимальная акустическая система по чувствительности, стоимости и величине помещения

АС - 5 4-х полосная пассивная		Акустическая система "закрывающая" тему точного звуковоспроизведения для больших (100 кв.м) помещений
